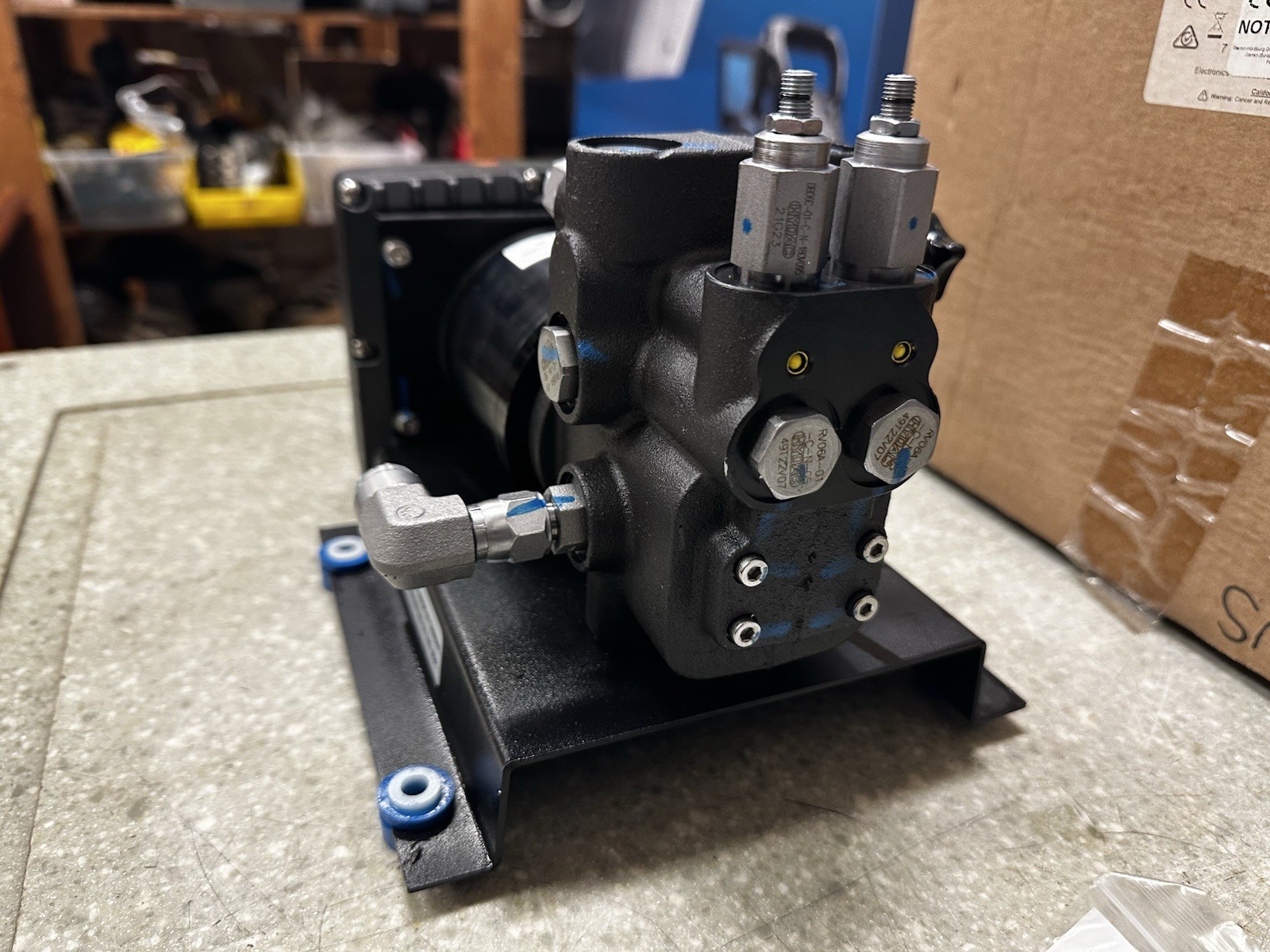

Garmin Marine, GHP Smart Pump V2, Built in CCU
The Garmin GHP SmartPump V2 does not have a built-in Course Computer Unit (CCU). The pump assembly contains the Electronic Control Unit (ECU), which is the power source and driver for the pump, but the separate Reactor 40 CCU (the “brain” of the autopilot system) is a distinct component included in the complete autopilot corepack.
$1,500.00
Maya / Pre-sale Questions
Need Help? Contact Us via WhatsApp
Compare
| Feature | Specification | Source |
|---|---|---|
| Dimensions (H x W x D) | 6.6″ x 7.5″ x 10.4″ (167.6 x 190.5 x 264.16 mm) or 7.8″ W x 7.5″ H x 9.6″ D (197 mm x 190 mm x 244 mm) | |
| Weight | 16.5 lbs (7.5 kg) | |
| Power Input | 10-30 Vdc (11.5-30 Vdc in some docs) | |
| Main Power Usage | Standby: less than 1 A; Engaged: 5-10 A; Peak: 34 A | |
| Fuse | 40 A, blade-type | |
| Flow Rate | Configurable from 0 to 2.4 L per minute (automatically adjusts based on boat speed) | |
| Compatible Cylinder Sizes | 4-24 cu in (cubic inches) | |
| Material | Electronics Control Unit (ECU): fully gasketed, aluminum alloy; Manifold: aluminum alloy; Motor: aluminum alloy | |
| Temperature Range | From 5°F to 131°F (from -15°C to 55°C) | |
| Motor Type | Brushless (for higher reliability and lower power consumption) |
| Feature | Specification | Source |
|---|---|---|
| Dimensions | 3 19/32″ diameter (91.4 mm) | |
| Weight | 5.6 oz (159 g) | |
| NMEA 2000 Power Input | 9-16 V | |
| NMEA 2000 LEN | 3 (150 mA) | |
| Case Material | Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards | |
| Temperature Range | From 5°F to 131°F (from -15°C to 55°C) | |
| Key Feature | 9-axis solid-state Attitude and Heading Reference System (AHRS) for enhanced performance and flexible mounting options |
Based on 0 reviews
Be the first to review “Garmin Marine, GHP Smart Pump V2, Built in CCU”
Related products
-
Outboard Motor parts & Accessories
Garmin Marine, AIS 600 Blackbox Transceiver
The Garmin AIS 600 Blackbox Transceiver specs include a dimension of \(9.8″\times 7.1″\times 2.5″\), a weight of \(4.2\) lbs (\(1.9\) kg), and an IPX7 waterproof rating. Its operating voltage is \(9.6-31.2\) Vdc, it draws a maximum of \(2\) A, and its antenna connector is SO-239 with a maximum gain of \(9\) dB. The unit is NMEA 2000 and NMEA 0183 certified and includes features like a built-in VHF antenna splitter and ClearTrack technology.
SKU: n/a -
Outboard Motor parts & Accessories
Garmin Marine, Reactor 40 Steer-By-Wire Corepack, with GHC 20
The Garmin Reactor 40 Steer-By-Wire Corepack with a GHC 20 display is an advanced autopilot system for boats with compatible steer-by-wire steering. It includes a solid-state 9-axis AHRS for accurate heading, various control features like heading hold and tack/jibe, and full integration with compatible Garmin chartplotters for control from anywhere on the vessel. The corepack comes with a GHC 20 control unit, a 4″ color display for easy viewing, and the necessary components for installation.
SKU: n/a -
Outboard Motor parts & Accessories, Yamaha

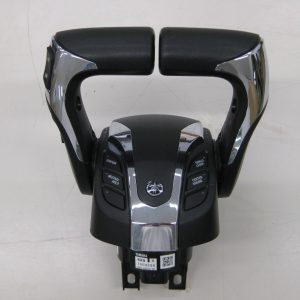

Yamaha Triple Engine Main-ST-Binnacle Helm Master-EX-DEC-Control
